Electronic bolt contacts VdS Cl. C

Startseite > Katalog > > Sensors > Bolt contacts > Electronic bolt contacts VdS Cl. C
ERK 85 01b

Artikelnummer: 1306774

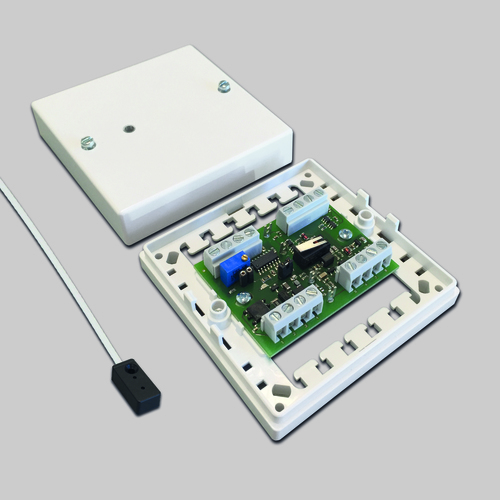

The unique electronic bolt contact ERK 8501b convinces through easy installation, a system independent connection and an inductive (touchless) lock state detection with enhanced tamper protection. The evaluation unit integrates evaluation and distribution in one box with additional connection possibilities of magnetic contacts or similar devices. Moreover a defeatable individual identification is also found in the box. The sensor is of extreme small design, it is weatherproof as well as dirt-repellant and guarantees a wearfree operation of up to 12 million switching cycles.

Technische Daten

attr.Zulassungen G 188037, VdS C
attr.Verwendung Stackable spacers in 2 and 3 mm for sensor (set of 2 x 10 pieces)
attr.Ausgaenge Lock state detection: N/O contact, Floating contact: N/C contact
attr.MasseSensor 20 x 10 x 7 mm (L x W x H)
attr.MasseAuswerteeinheit 85 x 85 x 26 mm (L x W x H)
attr.Temperaturbereich -25° C up to +70° C
attr.StromverbrauchinklLED 1 / 3 mA (locked / unlocked door)
attr.Betriebsspannung 9 up to 15 V DC

Artikelnummer: 1306774

Varianten

Farben
