100 10 17 A G2

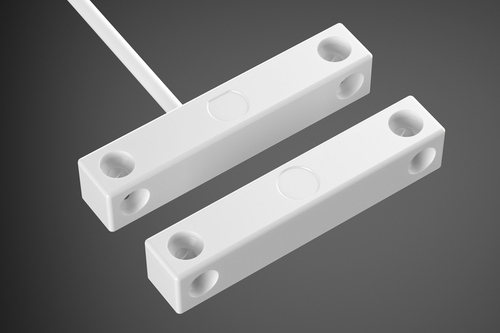

This surface-mounted, VdS-class B magnetic contact is suitable for opening state monitoring for doors, windows and other lock state elements. The practical “capstan” design and the extensive range of installation accessories supplied as standard, which include height adjusting discs, ensure that the installation process is quick, simple and fail-safe.
Attributes
| Approvals | G 191523, Opening state monitoring, VdS Class B, EN 50131-2-6 Grade 2 |
|---|---|
| Connection cable | LIYY 4 x 0.14 mm² |
| Contact capacity | Max. 10 W |
| Contact type | NO (Normally Open) |
| DC switching current | Max. 500 mA |
| Dimensions | 10 x 10 x 55 mm, height adjusting disk 2.5 x 55 mm |
| Protection category | VdS environmental class III, EN environmental class IIIA, IP67 |
| Switching distance | 26.5 mm ± 5 mm |
| Switching voltage | Max. 100 V DC |
