100 10 25 C G2

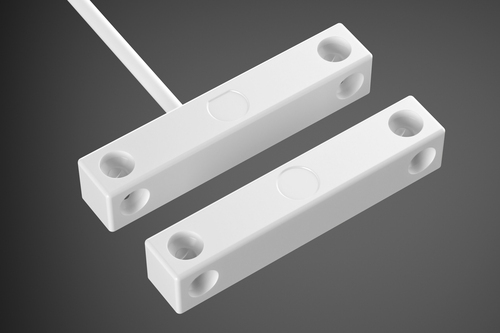

This surface-mounted, VdS-class B magnetic contact (contact type: change-over contact) is suitable for opening state monitoring for doors, windows and other lock state elements. The practical “capstan” design and the extensive range of installation accessories supplied as standard, which include height adjusting discs, ensure that the installation process is quick, simple and fail-safe.
Attributes
| Approvals | G 195527, Opening state monitoring, VdS Class B, EN 50131-2-6 Grade 2 |
|---|---|
| Connection cable | LIYY 5 x 0.14 mm² |
| Contact capacity | Max. 3 W |
| Contact type | CO (Change Over) |
| DC switching current | Max. 200 mA |
| Dimensions | 10 x 10 x 55 mm, Height adjusting disk 2.5 x 55 mm |
| Protection category | VdS environmental class III, EN environmental class IIIA, IP67 |
| Switching distance | 24 mm ± 5 mm |
| Switching voltage | Max. 30 V DC |
Accessories
| Type | Picture | Application |
|---|---|---|
|
M 11 32 Parallel installation |
|
Installation part for switch and/or magnet |
