Lock state monitoring VdS Cl. C
M 12 64

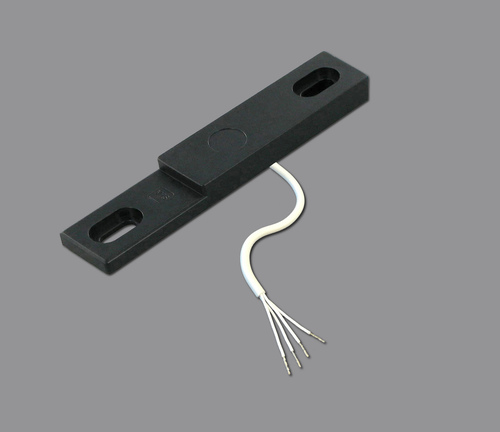

Sensor for integration of fittings, suitable for insulation displacement technology LSA. In combination with a suitable round magnet a solution with EN and VDS certification is created. An application in aluminum, plastic and wooden windows is possible.
Attributes
| Approvals | G 198532: Combined opening and locking monitoring, VdS Class B, EN 50131-2-6 Grade 2; G 198065: Locking state monitoring, VdS Class C |
|---|---|
| Cable dimensions | L 2 m, Ø 3.2 mm |
| Connection cable | LIYY 4 x 0.14 mm², Cu tinned |
| Contact capacity | max. 10 W, resistive load only |
| Contact type | NO (Normally Open) |
| Housing | 95 x 18 x 8/4.4 mm (L x W x H) |
| Housing material | A-B-S |
| Operating voltage | Max. 100 V DC |
| Protection category | VdS-Umweltklasse III, IP 67 |
| Switching current | Max. 500 mA |
| Switching distance | 18 mm +/- 4 mm, with magnet 100 63 MD |
| Temperature range | -40 °C to +70 °C |
