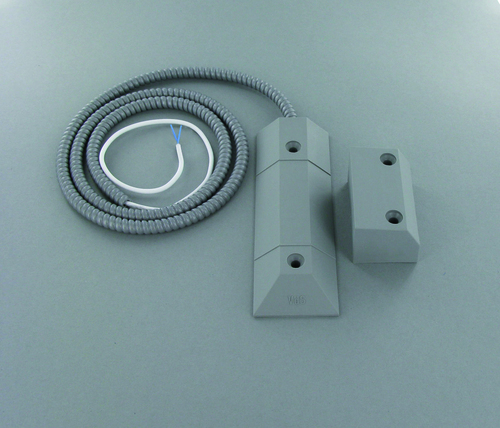

AMK 4 RxK G2
Surface mount magnetic contact suitable for insulation displacement technology LSA. Heavy duty version for shutter contacts, sliding gates and sweeping gates. With two integrated resistances.
Notes
| All conventional resistance combinations are feasible and certified. One resistor is in series and one parallel to the alarm contact. Availability on request, minimum frame quantity for new resistance combinations is 1,000 pcs. |
|---|
Attributes
| Approvals | G 110536, Opening state monitoring, VdS Class B, EN 50131-2-6 Grade 2 |
|---|---|
| Cable dimensions | L 2 m, Ø 3.2 mm |
| Connection cable | LIYY 2 x 0.14 mm², Cu tinned |
| Contact capacity | Max. 6 W |
| Contact housing | 146 x 50 x 16.5 mm |
| Contact type | NO (Normally Open) |
| Housing material | PA-GF |
| Inner conductor | white |
| Magnet | Ø 12 x 55 mm AlNiCo, axial polarized |
| Magnet housing | 66 x 40 x 35 mm |
| Metal tube | L 1 m, Ø 6 x 9 mm, steel galvanized, PVC coated, grey |
| Operating voltage | Max. 40 V DC |
| Protection category | VdS environmental class III, EN environmental class IIIA, IP67 |
| Switching current | Max. 500 mA |
| Switching distance | 50 mm ± 6 mm |
| Temperature range | -40 °C to +70 °C |
