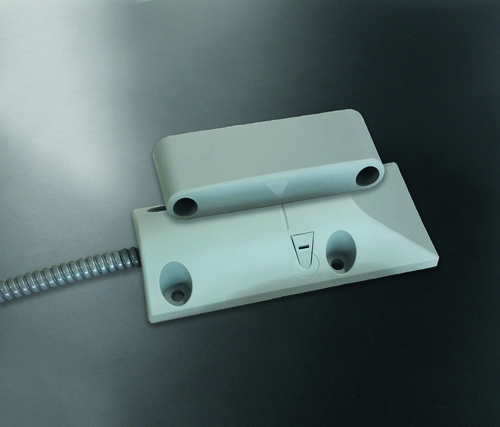

AMK 100 G4 ATS
The opening detector is designed for use in intruder alarm systems, which need to comply with the strictest security standards. One of the main features of the AMK 100 G4 ATS (with VdS-compliant cable construction) is that the magnet being monitored can be encrypted, which makes it virtually impossible to manipulate. This way, the shutter, sliding and garage doors being monitored can effectively be protected from attempted vandalism and burglary.
Attributes
| Approvals | G 113032, Opening state monitoring, VdS Class C, EN 50131-2-6 Grade 4 |
|---|---|
| Cable dimensions | L 4 m, Ø 5.8 mm |
| Connection cable | LIYY 9 x 0.14 mm² copper tinned |
| Dimensions contact | 140 x 62 x 28 mm (L x W x H) |
| Dimensions magnet | 121.5 x 25 x 45 mm (L x W x H) |
| Energy consumption (monitoring mode) | approx. 5 mA (typical) |
| Housing material | A-B-S, PA6-GF30, PS |
| Inner conductor | 4x yellow, 2x white, red, blue, pink |
| Measurement speed | approx. 100 ms |
| Operating voltage | 12 – 24 V DC |
| Permitted installation gap for the magnet detector | 10 to 20 mm |
| Permitted output current | Max. 50 mA |
| Permitted output voltage | Max. 30 V DC |
| Protection category | VdS environmental class III, EN environmental class IIIA, IP67 |
| Signal output | Electronic switch |
| Temperature range | -40°C to +70°C |
| Transfer resistance | approx. 5 mA (typical) |
Packaging
| Delivery contents | 1 holder for AMK 100 G4, 1 cover for AMK 100 G4, various screw sets |
|---|
