Glassbreak detectors EN Grade 2 / VdS Cl. B

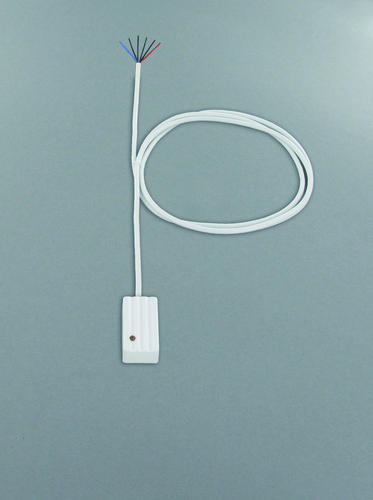

GBS R6
Passive glassbreak detector with relais output, suitable for insulation displacement technology LSA. Individual identification via LED-indicator, alarm logging, SMD-technology, reverse polarity protection.
Notes
| Contact capacity: Max. 300 mW |
|---|
Attributes
| Approvals | G 189517: VdS Class B, EN 50131-2-7-2 Grade 2; 14-12: SBSC Alarm Class 2 |
|---|---|
| Cable dimensions | L 2 m, Ø 3.8 mm |
| Connection cable | LIYY 6 x 0.14 mm², Cu tinned |
| Housing | 37 x 19 x 12 mm |
| Housing base | Ceramic substrate |
| Housing material | S-B, PA-GF |
| Inner conductor | 4 black, red, blue |
| Monitoring radius | up to 2 m |
| Operating current triggered | app. 5 mA at 12 V |
| Operating voltage | 9 - 18 V DC |
| Parallel capacity | app. 10 nF |
| Protection category | VdS environmental class III, EN environmental class IIIA, IP67 |
| Reset duration | Min. 10 ms |
| Reset voltage | Max. 2.2 V |
| Stand-by current | app. 0.6 mA |
| Switching current | Max. 200 mA |
| Switching voltage | Max. 24 V DC |
| Temperature range | -40 °C to +70 °C |
| Transition resistance | app. 5 Ω |
*
Contact capacity: Max. 300 mW
