Miniature door loops
M 13 35

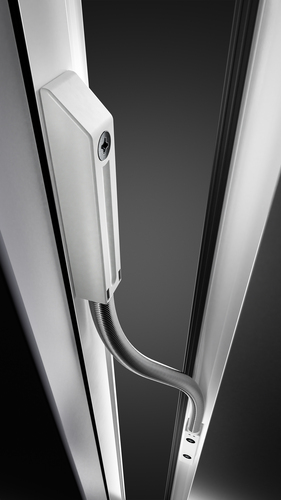

Due to its small dimensions, the miniature door loop M 13 35 can be mounted concealed in the window rebate. By loosening the locking screw and disconnecting the integrated 6-pole plug connection, it is possible to unhook the window.
Notes
| The temperature range during operation varies depending on the transmitted current power. |
|---|
Downloads
Attributes
| Aperture angle | 180° |
|---|---|
| Applications | Window rebate, french door rebate |
| Cable length socket / plug | See “product versions” |
| Connector | 6-pole |
| Current consumption | max. 3 A (continuous current per wire) max. 6 A (inrush current, 3 sec.) |
| Material spring | Stainless steel |
| Operating voltage | 48 V DC |
| Protection category | IP 67 |
| Special features | Free of lead, cadmium, CFC and halogen, small size |
| Temperature range | -40 °C to +80 °C (at rest) -20 °C to +80 °C (in motion) |
Packaging
| Delivery contents | Door loop, mounting instruction, fixing material |
|---|
